Lapis^® Integrated Engines

Lapis Integrated High-Power Multi-Laser Engine

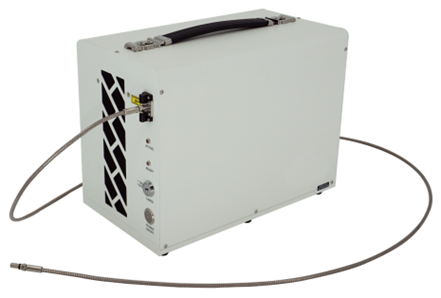

The Lapis^® High-Power Multi-laser Engine delivers >1 Watt of output power at the distal end of an optical fiber from each of its individually lasers. The light output port has a built-in adapter for facile connection to microscopes and other bioanalytical instruments through a SMA-terminated optical fiber. These capabilities are assembled in a compact bench-top unit.

---

Features:

• Up to 11 wavelengths
• From 375 to 1064 nm
• Adjustable output power
• Multi-mode fiber output
• Speckle reduction
• Fast rise/fall time

Overview:

Lapis^® High-Power Multi-laser Engines feature an advanced control system based on an onboard computer with an embedded command library. This allows control using simple and intuitive text string commands sent to the light engine via USB/RS-232 or TCP serial protocols. These commands give access not only to the basic control functions of light source selection, on/off switching and output intensity adjustment, but also to an extensive panel of operating status reports and advanced control features.

Long-term stability is sustained by active power control circuitry. The light output is monitored and controlled using an internal feedback loop to maintain constant output over time.
